RELIABLE POWER SUPPLY. HIGH EFFICIENCY.

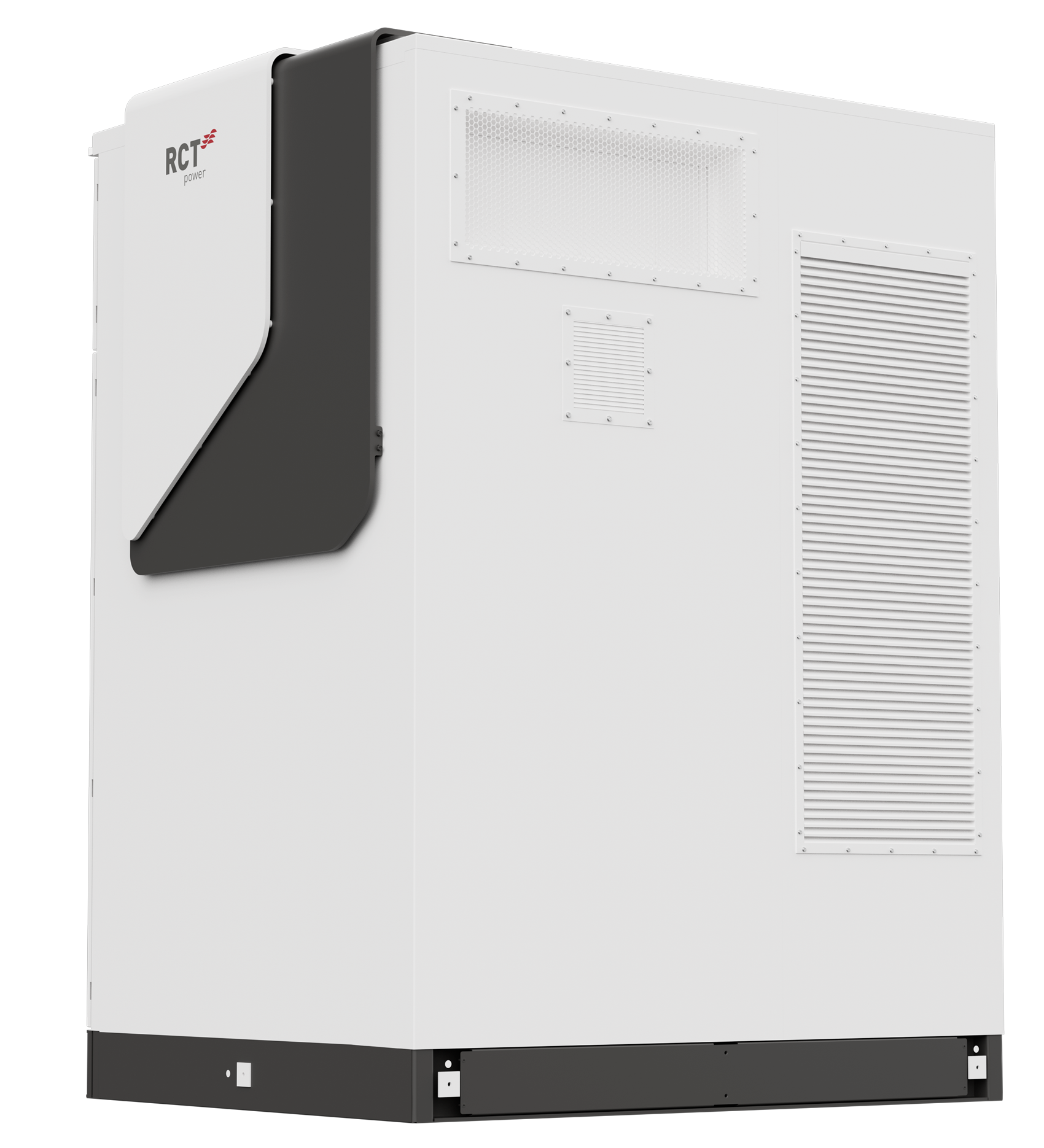

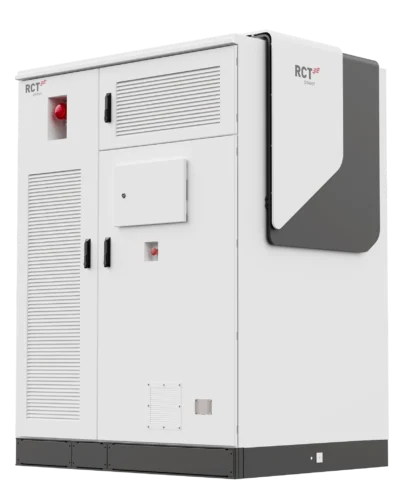

RCTerra Class 1.0 is a reliable 233 kWh battery storage system for commercial and industry applications behind the meter. This all-in-one cabinet offers maximum performance in a small space. It is fully equipped with LiFePO4 battery modules, AC/DC inverter, liquid cooling, multi-level battery management system, solar DC/DC converter and STS module for storing excess solar power and automatic backup power switch for grid outages.
Lithium iron phosphate (LFP) chemistry provides the highest level of safety, thermal stability and reliability. Preinstalled liquid cooled RCT Power battery modules are most efficient and grant longevity.
SPECIFICATIONS
RCTerra Class 1.0
Nominal capacity
233 kWh
Usable capacity (90% DoD)
221.35 kWh
Battery technology
LiFePO4
Charge/discharge rate
0.5 C
Dimensions (W x H x D)
1600 x 2200 x 1300
BMS (battery management system)
integrated
EMS
integrated
Warranty
5 years (option: 10 years)
POWER FOR YOUR BUSINESS.
FOR OUR PLANET.
